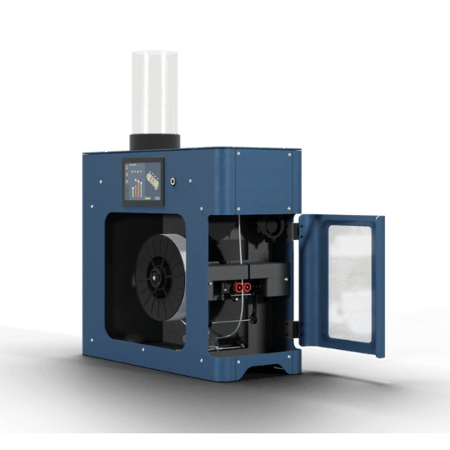

Filament Makers

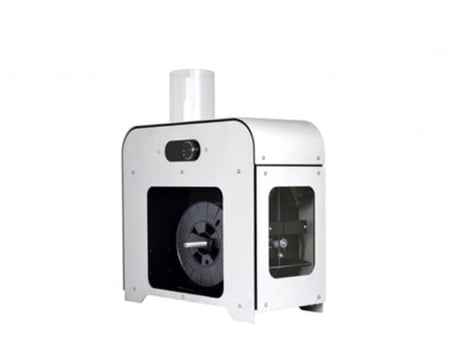

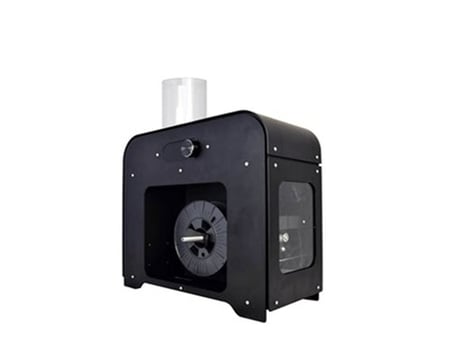

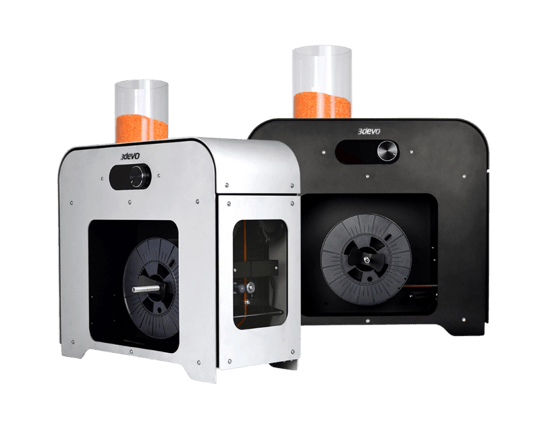

The Composer and Precision Series

The Composer and Precision Series filament makers are specialized, result-oriented machines with industrial quality power. Making polymers simpler than ever to work with, while offering even more possibilities in manufacturing and innovation.

Filament-maker-wpp-copy

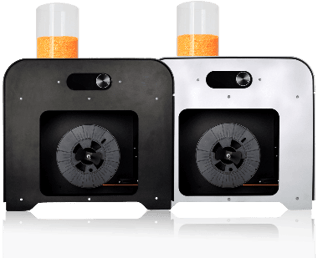

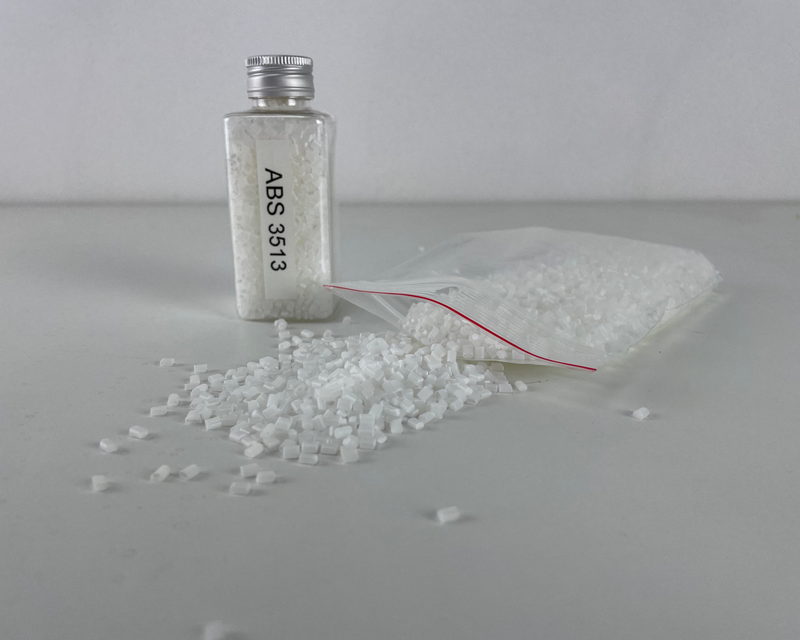

Make filament out of pellets or shredded plastic regrinds right from your desk.

composer-optimised
extruder

A Complete Filament Production Line.

Packed into one machine.
 Has everything you need to create your own 3D printing filament – right at your desk.

Interface-1

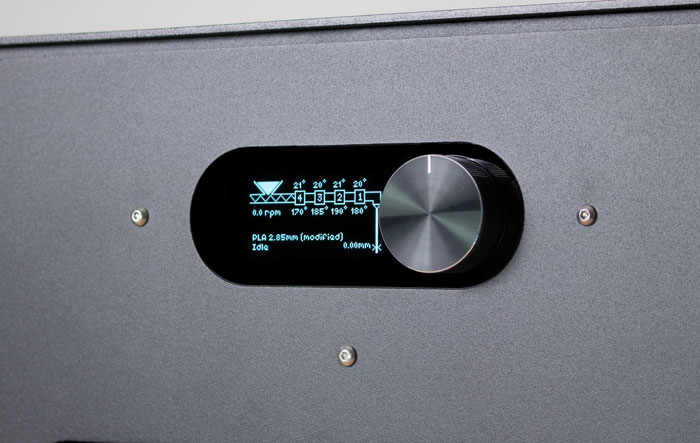

Display Interface

  • Easily accessible settings
  • Convenient standard material pre-sets
  • Customizable material profiles for perfect results

Connectivity

  • Simple USB connectivity with your computer/laptop
  • Regular firmware updates and instant access to new features

Hopper

  • Optical sensor to check the material level
  • Removable tube; multiple sizes supported
  • Built-in safety grille

Extruder

  • 4 heating zones, reaching temperatures up to 450°C
  • Nitride hardened steel extruder screw

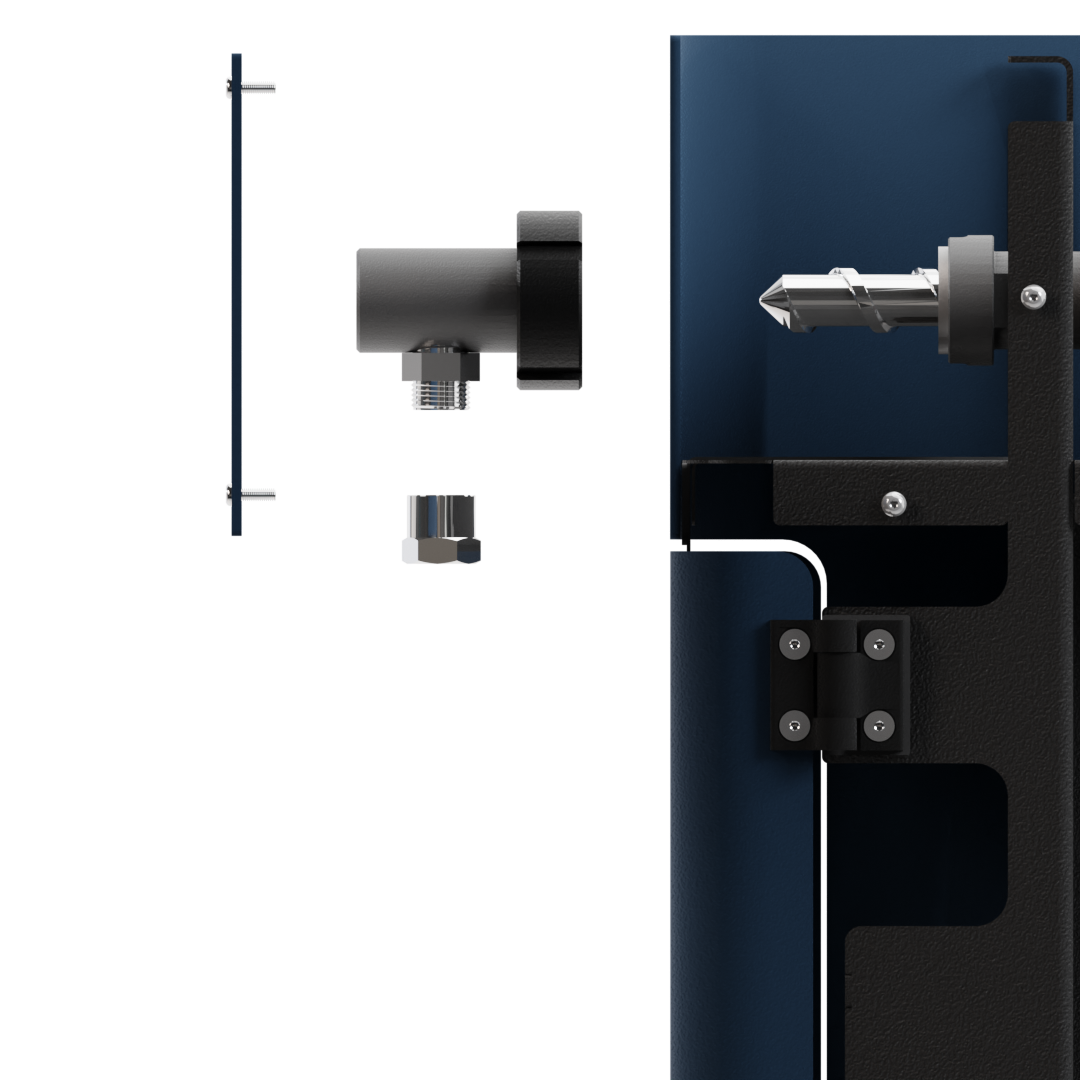

  • Swappable extruder design
  • Optional mixing section (Composer Series)
  • Replaceable extruder nozzle

Cooling_

  • Dual fan system for even air distribution
  • Adjustable fan angles for optimal air flow
  • Customizable, material-specific fan speeds

Sensor + Puller System

Sensor

Optical sensor

  • Accurate diameter measurement between 0.5mm and 3.0mm; 43 micron precision
  • One nozzle for all filament diameters
  • Ideal sensor placement to ensure filament roundness

Puller system

  • Automatic speed adjustment for accurate diameter control
  • Changeable puller wheels to suit material temperature variations

Positioner

Set your own spool sizes, and with auto spooling let the system to the work. The filament maker will neatly position itself to get a nice-looking spool that won't tangle.

Features

  • Adjustable positioner, with a max spool width of 120mm
  • Automatic spooling to user-defined size
  • Retractable arm for neat, even winding of all spool sizes

Winder

  • Fit spools with a max Diameter: of 240mm, And a max width of: 120mm
  • User-friendly slipper clutch for spool tension adjustments
  • Swappable spool mount for quick changing between spools

Durable and Versatile
Components

Hardened for Durability

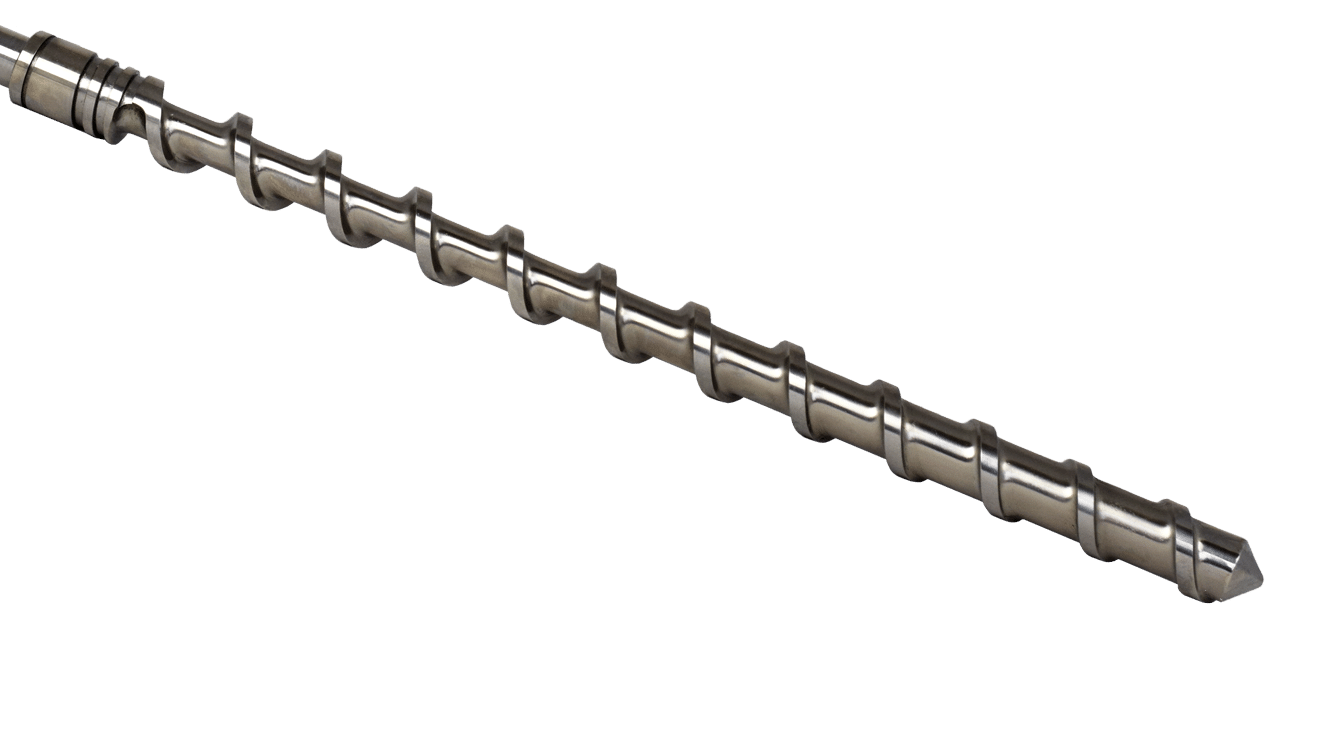

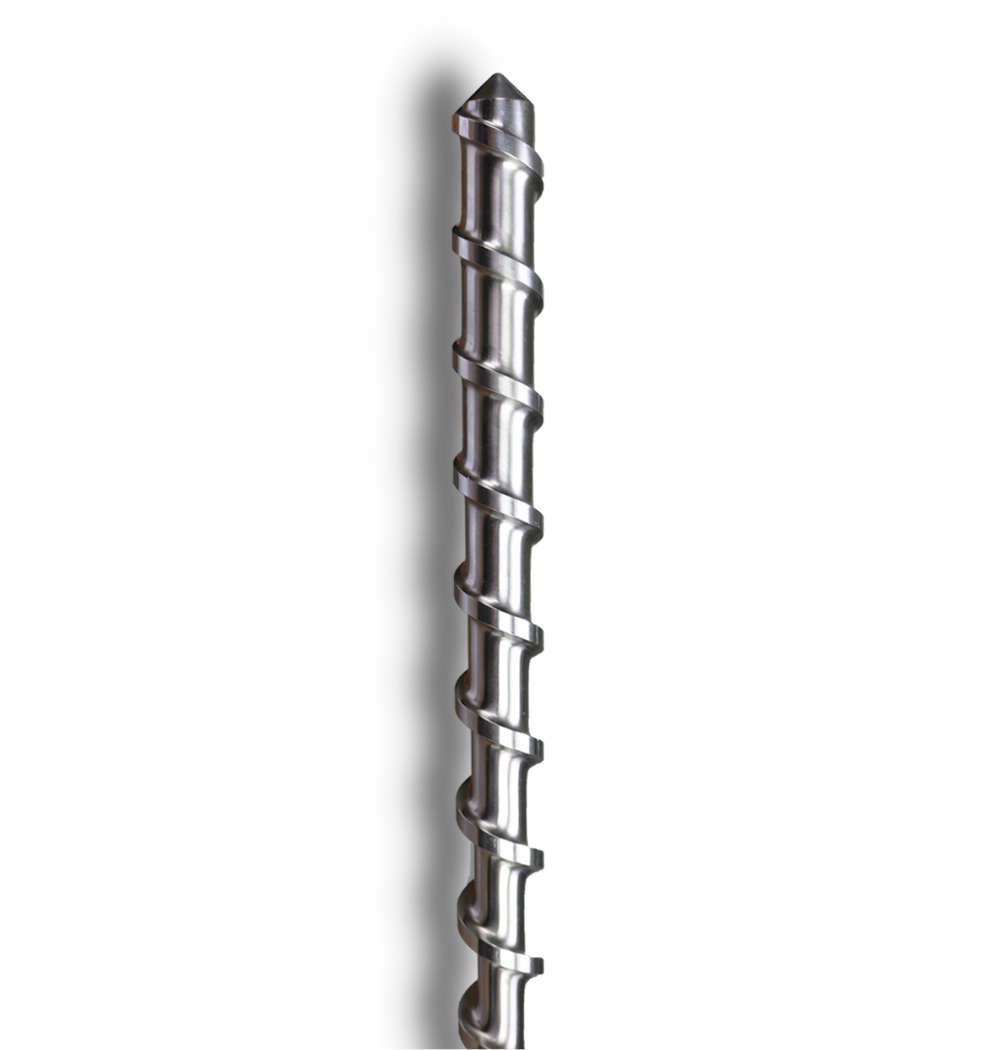

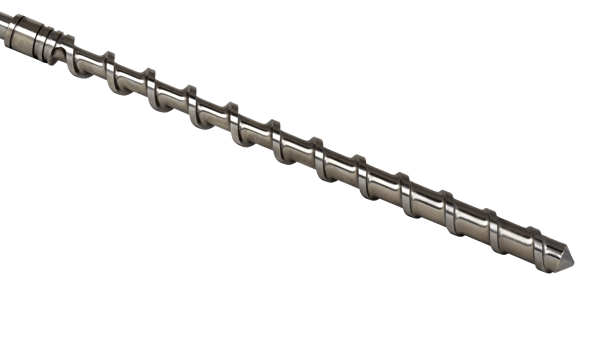

The extruder screw in the Composer is machined for mixing. Its nitride-hardened interior ensures industrial-grade filament extrusion.

Extruder Mixing Zone

Enables you to blend different additives, plastics, fibers or powders
to create custom filaments.

Next-1.0-regular-extruder-screw

Easy, Accessible and
Automated

The unique vertical extrusion setup in the filament makers ensures precise roundness and accurately guides the filament to the spool.

A dual air cooling system, with adjustable fan speeds and positions, ensures optimal cooling settings for the materials you work with.

A sophisticated optical sensor and a dynamic puller system work together to achieve a diameter precision tolerance of +/- 0.05mm*.

*(to get the exact diameter tolerance tuning might be needed depending on material type)

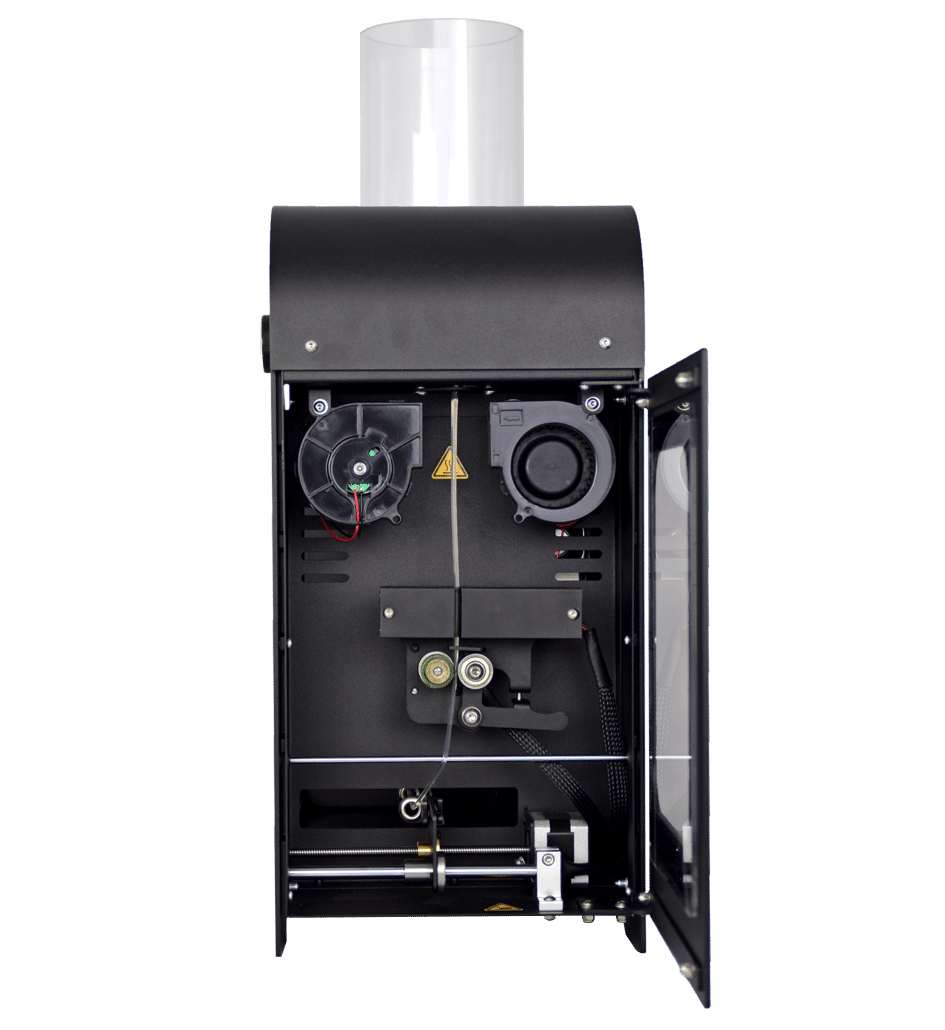

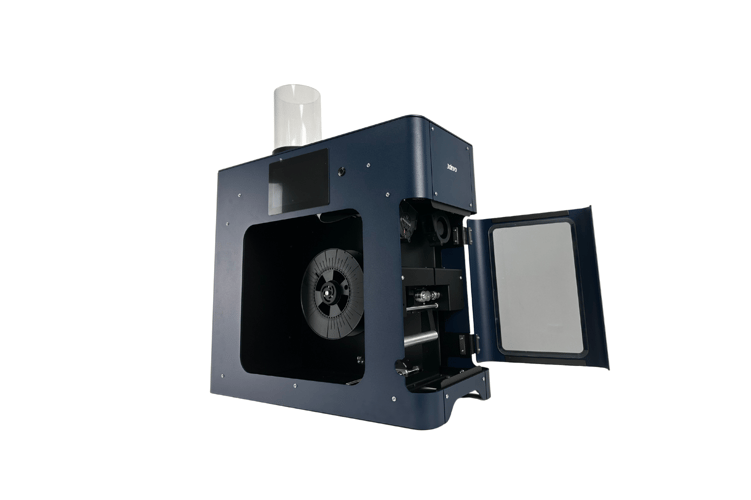

NEXT-1.0-front-open-945x1030

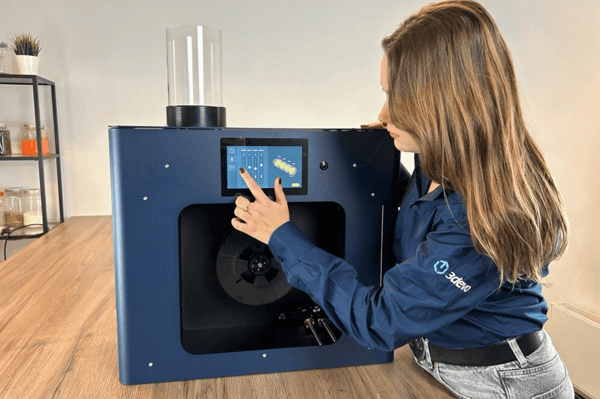

User-friendly and easy to control.

An embedded OLED display and a single rotate-and-push control button provide easy access to all features and functionalities of the filament makers.

Connect your filament maker to your computer via USB to receive the latest firmware and feature .

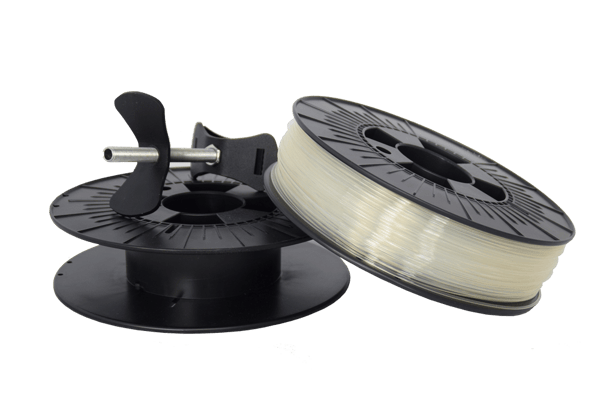

Unlimited filament, neatly spooled

Thanks to its swappable spool mount, the filament makers support diverse spool sizes and quick spool changes.

Set your custom spool dimensions to get a neatly rolled spool of filament.

Adjust the built-in slipper clutch to get the right amount of tension in your filament spool.

Spoel_filla-1

Building 3D printing materials
with our filament makers

Learn more

Unlocking Recycling Innovations with 3devo's Solution

Unlocking Recycling Innovations with 3devo's Solution

In the quest for a sustainable future, recycling innovations play a pivotal role…

May 17, 2023 3:49:14 PM 2 min read
Revolutionizing Tissue Reconstruction with 3D-Printing Technology

Revolutionizing Tissue Reconstruction with 3D-Printing Technology

Jan 17, 2023 1:45:00 PM 1 min read
What can we expect from 3devo in 2023?
3devo Team Formnext 2022

What can we expect from 3devo in 2023?

Can you believe another year has already passed? It's been an incredible ride fo…

Dec 28, 2022 2:15:00 PM 1 min read
Top 10 Best 3D Printed Christmas Gifts

Top 10 Best 3D Printed Christmas Gifts



Dec 21, 2022 7:07:00 PM 7 min read

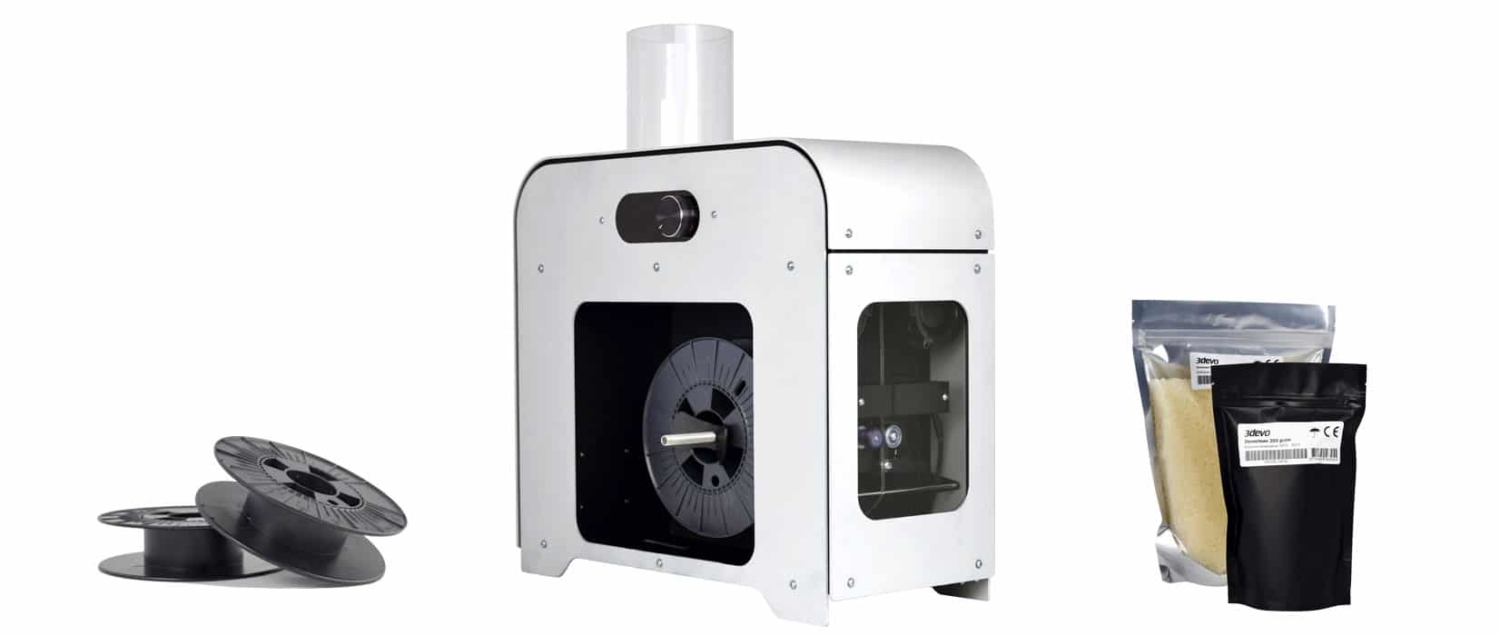

Take 3D Printing to another level

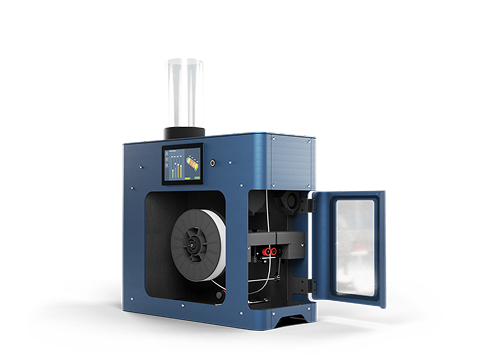

Get your own Filament Factory
